Mortise-and-Tenon Corner Construction

One of the main features of Yue Shang is its mortise-and-tenon corner joint.

Instead of relying on a simple visible mitered connection, the frame corners use a fitted joint construction designed to create a cleaner transition between the aluminum sections. This is particularly useful for larger architectural windows where the corner detail is visually important.

The result is a more refined frame appearance while providing a distinct fabrication approach compared with standard mitered casement windows.

120 × 57 mm Heavy Aluminum Frame

The 120 × 57 mm frame gives Yue Shang a substantial profile suited to architectural applications where a larger-framed casement window is preferred.

The 1.8 mm section thickness provides the specified aluminum construction for the system and should be considered when developing project window schedules and fabrication requirements.

Double-Tempered Insulated Glass

Yue Shang uses:

5 mm + 20A + 5 mm double-tempered clear glass

The insulated cavity is argon filled, providing a multi-layer glazing configuration for projects where thermal and indoor-comfort considerations are part of the window specification.

Actual performance depends on the complete window assembly, glass, frame, sealing system, installation, and building design.

Top-Hinged Outward Opening

The Yue Shang uses a top-hinged, out-swinging configuration.

This makes it suitable for spaces requiring an operable window for ventilation while maintaining a clean architectural elevation.

Because the sash opens outward, the installation design should allow sufficient clearance from balconies, railings, walkways, shading systems, and other exterior elements.

Weather-Sealing Components

The window incorporates a duckbill weather strip around the sash.

This forms part of the system’s weather-sealing arrangement and is important when the window is used in exterior building applications exposed to wind and rain.

The final weather performance depends on the complete installed assembly rather than the weather strip alone.

CMECH America Hardware

CMECH America hardware is specified as standard for Yue Shang.

The hardware supports the window’s opening, closing, and locking functions and should be selected and coordinated according to the final project configuration.

Applications

Yue Shang is suitable for:

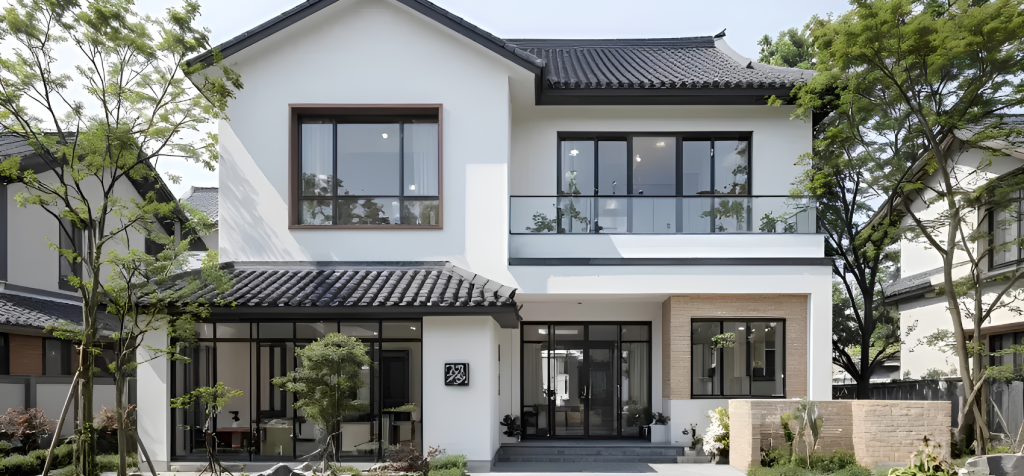

• Luxury villas
• Modern residential buildings
• Townhouses
• Apartment developments
• Residential façades
• Commercial ground-floor façades
• High-end renovation projects
• Architectural window openings
• Bedrooms and living areas
• Large residential window openings

Its heavier 120 × 57 mm frame makes it particularly suitable where the design calls for a more substantial casement-window profile.

Target Industries

The product is relevant to:

Architecture & Design – for contemporary façade and window specifications.

Residential Construction – for villas, townhouses, and modern homes.

Real Estate Development – for apartment and multi-unit residential projects.

General Contracting – for sourcing complete architectural aluminum windows.

Window Fabrication – for projects requiring a defined frame and corner-joint system.

Building Material Supply – for distributors supplying aluminum windows to construction projects.

Design & Specification Considerations

Before ordering Yue Shang, project teams should confirm:

• Finished window dimensions
• Opening direction
• Exterior sash clearance
• Glass requirements
• Interior and exterior finishes
• Hardware requirements
• Wall and façade interface
• Drainage and sealing details
• Installation method
• Local building requirements

For larger openings, the frame dimensions and final configuration should be reviewed against the structural and architectural requirements of the project.

Yue Shang for UAE & GCC Projects

Yue Shang is well positioned for UAE and GCC residential and architectural projects, particularly where a substantial aluminum frame and insulated glazing are preferred.

For these projects, architects and contractors should evaluate the complete window system for:

• Solar exposure
• High temperatures
• Wind conditions
• Dust exposure
• Rainwater management
• Glazing performance
• Sealing
• Installation quality
• Applicable local requirements

The final configuration should be confirmed according to the actual project conditions.

Why Choose Yue Shang?

Yue Shang combines a 120 × 57 mm architectural frame, mortise-and-tenon corner construction, double-tempered insulated glazing, argon-filled cavity, CMECH America hardware, and top-hinged outward opening in one window system.

This makes it a suitable choice for projects looking for a more substantial and detailed alternative to a basic aluminum casement window.

Frequently Asked Questions

What is the Yue Shang Casement Window?

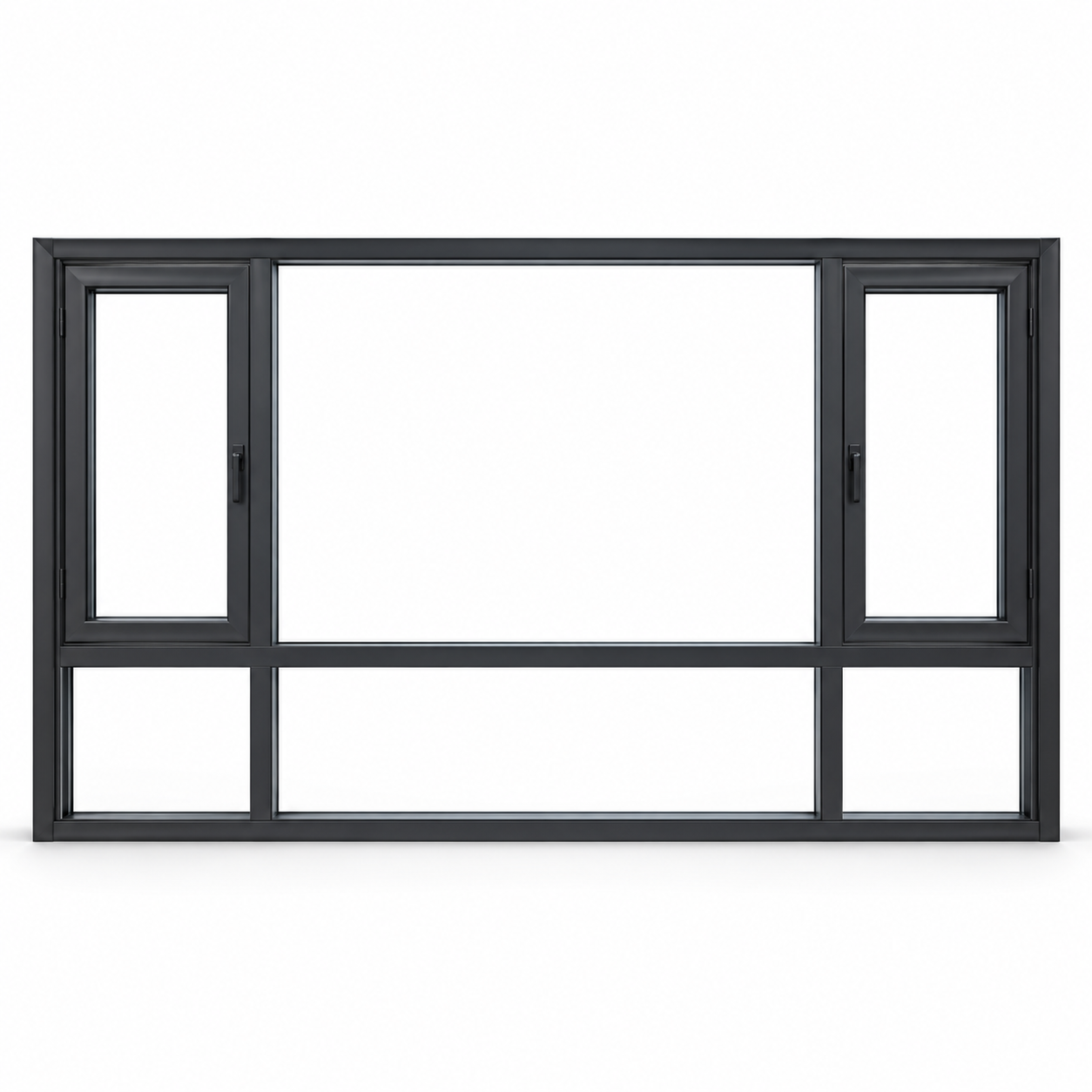

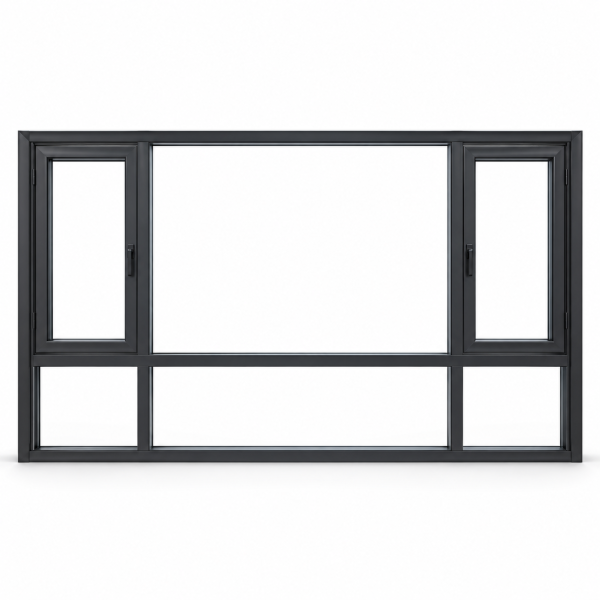

Yue Shang is a heavy-frame aluminum casement window with a 120 × 57 mm profile and a top-hinged outward-opening sash.

What makes Yue Shang different?

Its key differentiator is the mortise-and-tenon corner construction, combined with the larger 120 × 57 mm frame.

What glass does Yue Shang use?

It uses 5 + 20A + 5 double-tempered clear glass with an argon-filled cavity.

What hardware is used?

The standard hardware is CMECH America.

Does Yue Shang open outward?

Yes. It uses a top-hinged out-swinging opening configuration.

Is Yue Shang suitable for villas?

Yes. It is suitable for villas, townhouses, apartments, residential developments, and modern architectural façades.

Is Yue Shang suitable for large residential façades?

Its larger 120 × 57 mm frame makes it relevant to architectural applications requiring a more substantial casement-window profile. Final dimensions and configuration should be confirmed for the specific project.

What colors are available?

The listed colors are Bilbao Black and Flash Silver Gray, with indoor and outdoor finishes mixable.

What is the minimum billable area?

The product page lists a minimum billable area of 1.2 m² per window.
