Description

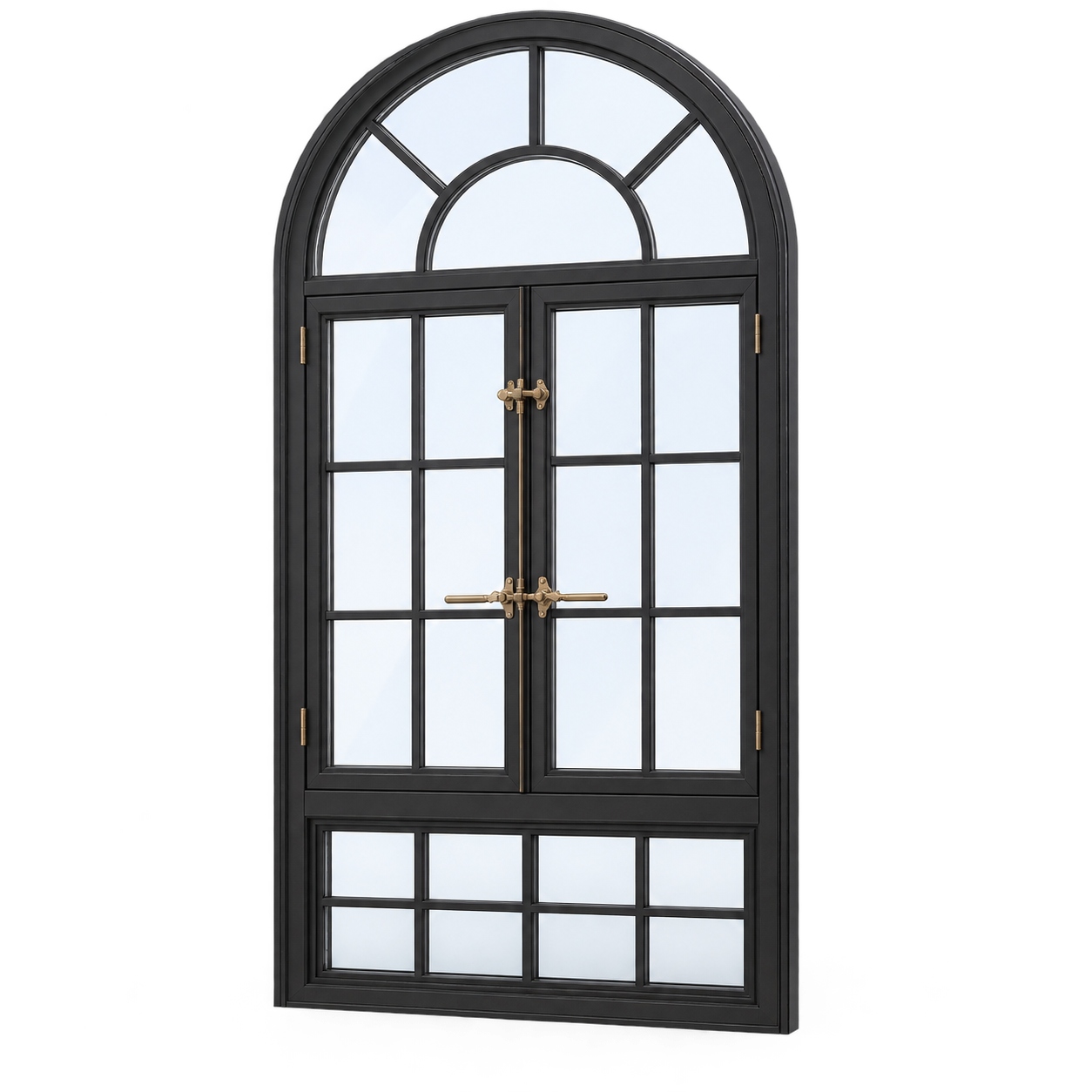

The 80 Series Vintage Aluminum Casement Window combines a classic heritage-style appearance with a thermal-break aluminum profile for projects that need traditional window detailing without using a conventional non-thermal-break frame.
The system uses an 80 × 37 mm frame, 3.0 mm wall thickness, and 5 + 15A + 5 double-tempered clear glass. Its vintage-inspired profile is suited to façades where a more traditional architectural appearance is preferred over a minimal contemporary frame.

Thermal-Break Aluminum Construction
The window uses an 80 Series thermal-break, or broken-bridge, aluminum profile.
A thermal-break construction separates the internal and external aluminum portions of the frame, reducing direct heat transfer through the metal profile. This makes the system relevant to buildings where improving the thermal behavior of the window frame is an important design consideration.
The 3.0 mm wall thickness also gives the system a heavier profile than many standard aluminum casement systems.
Vintage & Heritage Window Design
The main visual advantage of this window is its vintage-style frame detailing.
It is suited to projects where the windows need to support a classic, heritage, restoration, or timeless architectural character rather than a fully modern glass-and-aluminum appearance.
This makes it useful for both authentic restoration-style designs and new buildings that intentionally use traditional architectural elements.
Double-Tempered Insulated Glass
The specified glazing is:
5 mm + 15A + 5 mm double-tempered clear glass
The two glass panes are separated by a 15A cavity, providing an insulated double-glazing configuration.
For projects with specific requirements for solar control, acoustic performance, privacy, or higher thermal performance, the final glass specification should be confirmed according to the project requirements.
| Component | Specification |
|---|---|
| Profile System | 80 Series, thermal break (broken bridge) |
| Wall Thickness | 3.0mm |
| Frame Size | 80 x 37mm |
| Glass Configuration | 5mm + 15A + 5mm double tempered clear glass |
| Style | Vintage/heritage frame detailing |
Applications

The 80 Series Vintage Casement Window is particularly suitable for:
- Heritage-style villas
- Traditional residential homes
- Luxury villas
- Boutique hotels
- Heritage-inspired developments
- Restoration projects
- Renovation projects
- Classical architectural façades
- Country-style homes
- Traditional commercial buildings
- Feature windows in modern buildings requiring a vintage appearance
Target Industries
This product can be specified by:
Architects & Designers – for heritage, classical, and transitional architectural projects.
Villa Developers – for luxury and traditional residential developments.
Hotel Developers – for boutique and hospitality projects requiring a distinctive architectural style.
Restoration Contractors – for buildings where the window design needs to complement an existing traditional façade.
General Contractors – for residential and architectural window procurement.
Window Fabricators – for projects requiring thermal-break aluminum with vintage-style detailing.
Ideal Project Styles
The 80 Series is a strong fit for projects using:
- Heritage architecture
- Classical architecture
- Traditional villa design
- European-inspired façades
- Vintage interiors
- Restoration aesthetics
- Transitional architecture
- Modern-classic residential design
It can also be used selectively in contemporary buildings as a contrasting architectural feature.
Why Choose a Thermal-Break Vintage Window?
Traditional-looking windows do not always need to use traditional frame materials.
This system allows the project to retain a vintage visual character while using a modern thermal-break aluminum frame construction.
That makes it particularly useful where the architect wants to balance:
Classic appearance + aluminum durability + insulated glazing + thermal-break construction.
Design Considerations
Before specifying the 80 Series, project teams should confirm:
- Overall window dimensions
- Opening configuration
- Glass requirements
- Interior and exterior finish
- Hardware
- Wall thickness and frame interface
- Installation method
- Weather-sealing requirements
- Local thermal and structural requirements
For restoration projects, the frame proportions and visible detailing should also be checked against the existing building façade.
UAE & GCC Applications
The thermal-break construction makes this window relevant to UAE and GCC projects where heat transfer through aluminum framing is an important design consideration.
It can be used for villas, boutique hospitality projects, traditional-style residences, and architectural developments that want a classic façade without abandoning modern aluminum window construction.
Actual thermal and weather performance should be established from the complete window assembly, glass specification, installation, and project requirements.
80 Series for Restoration Projects
For restoration and heritage-inspired projects, window replacement is often about more than simply filling an opening.
The window needs to work with the building’s:
- Existing façade proportions
- Architectural style
- Frame appearance
- Interior design
- Glazing requirements
- Weather protection
- Modern performance expectations
The vintage detailing of the 80 Series makes it particularly relevant where maintaining a traditional visual language is important.
Frequently Asked Questions
What is the 80 Series Vintage Casement Window?
It is a vintage-style aluminum casement window using an 80 Series thermal-break profile designed for heritage, traditional, and classic architectural applications.
What is a thermal-break aluminum window?
A thermal-break aluminum window separates the internal and external aluminum portions of the frame to reduce direct heat transfer through the metal profile.
What is the frame size?
The frame size is 80 × 37 mm.
What is the aluminum wall thickness?
The listed wall thickness is 3.0 mm.
What glass does the window use?
The standard glazing is 5 + 15A + 5 double-tempered clear glass.
Is this window suitable for heritage-style buildings?
Yes. Its vintage and heritage-style frame detailing makes it suitable for restoration projects and new buildings designed with traditional architectural characteristics.
Can it be used in modern villas?
Yes. It can work particularly well in modern-classic, transitional, luxury, and European-inspired villa designs.
Is the 80 Series suitable for renovation projects?
Yes. Its vintage appearance makes it relevant to renovation and replacement projects where a traditional window style needs to be maintained.
Does the thermal break make it different from standard aluminum windows?
Yes. The thermal-break construction is designed to reduce direct heat transfer through the aluminum frame compared with a conventional continuous aluminum profile.
What types of buildings can use this window?
It can be considered for villas, traditional homes, boutique hotels, restoration projects, heritage-style buildings, and architectural developments requiring vintage window detailing.
