Main Features

110 × 34 mm Aluminum Frame

The Jia Shang uses a 110 × 34 mm frame profile.

The frame dimension should be considered when coordinating the window with wall openings, façade details, adjacent glazing, interior finishes, and architectural elevations.

1.8 mm Aluminum Section Thickness

The listed aluminum section thickness is 1.8 mm.

This specification is important for architects, contractors, fabricators, and procurement teams when comparing window systems and preparing project window schedules.

Top-Hinged Out-Swinging Design

Unlike a conventional side-hinged casement, the Jia Shang uses a top-hinged, outward-opening configuration.

This allows the sash to open outward from the top and creates a distinctive operating configuration suitable for specific architectural and ventilation requirements.

The opening method should be coordinated with external façade conditions, shading devices, adjacent structures, balconies, walkways, and maintenance access.

Arch-Bent Corners

The frame uses arch-bent corners rather than relying only on conventional straight corner geometry.

This gives the window a more refined visual treatment and allows the corner design to become part of the architectural character of the window.

Double-Tempered Clear Glass

The specified glazing configuration is:

5 mm tempered glass + 24A + 5 mm tempered glass

The result is a double-glazed unit consisting of two tempered glass panes separated by a 24A cavity.

Argon-Filled Glazing

The glazing cavity is specified as argon-filled.

An argon-filled insulated glass unit provides an additional glazing specification for projects considering thermal insulation and indoor comfort.

Final thermal performance depends on the complete window assembly, glass characteristics, frame design, seals, installation, orientation, and surrounding building envelope.

CMECH America Hardware

The Jia Shang uses CMECH America hardware as standard.

Hardware is a critical part of an operable casement window because it controls opening, closing, locking, and long-term daily operation.

Duckbill Weather Strip

A duckbill weather strip runs around the sash.

The weather strip forms part of the window’s sealing system and helps reduce the path available for outdoor air, dust, and rainwater to enter through the sash interface.

The effectiveness of weather sealing depends on the complete window assembly and installation quality.

Aluminum Spacer

The insulated glass unit incorporates an aluminum spacer between the two panes.

The spacer forms part of the edge construction of the insulated glazing unit and separates the inner and outer glass panes.

Glass Construction

The Jia Shang uses:

5 + 24A + 5 Double Tempered Clear Glass, Argon Filled

Breaking this specification down:

5 mm: Exterior or first glass pane
24A: Insulated cavity
5 mm: Second glass pane
Argon Filled: The insulated cavity contains argon gas

This configuration is suitable for projects that require a double-glazed window specification rather than single glazing.

Applications

The Jia Shang is suitable for a broad range of architectural and residential applications.

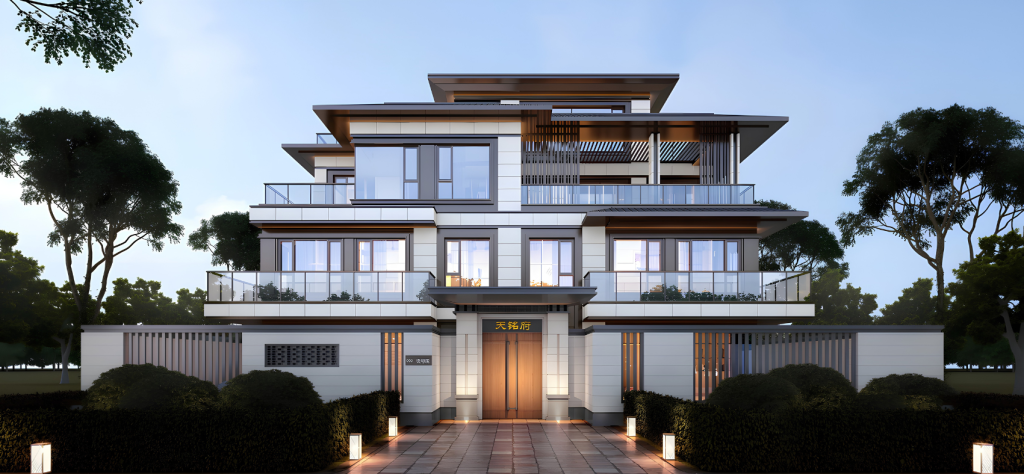

Villa Windows

The system can be used for villa bedrooms, living spaces, dining areas, kitchens, home offices, private studies, and other rooms requiring operable architectural glazing.

Its modern frame and premium hardware specification can also complement contemporary villa façades.

Luxury Residential Projects

For high-end residential projects, the combination of argon-filled double glazing, CMECH America hardware, arch-bent corners, and selectable interior/exterior finishes provides a more detailed window specification than a basic aluminum casement system.

Apartments

The system can be specified for apartment projects where the design requires operable windows and insulated double glazing.

Window opening direction should be coordinated with balconies, façade projections, neighboring structures, and building maintenance requirements.

Townhouses

Jia Shang can be used in townhouse developments where a consistent window system is required across multiple units.

Residential Renovations

The system may also be suitable for renovation and replacement-window projects where existing openings can accommodate the required frame and glazing configuration.

Architectural Façades

Architects can use Jia Shang as an operable component within a larger façade strategy, combining opening windows with fixed glazing and other YSUN window systems.

Target Industries

Residential Construction

For villa, townhouse, apartment, and private residential construction.

Real Estate Development

For developers planning repeated window specifications across multi-unit developments.

Architecture and Interior Design

For architectural specifications where appearance, glazing construction, ventilation, and window operation must be coordinated.

General Contracting

For contractors sourcing complete aluminum window systems for residential and architectural projects.

Window Fabrication

For fabricators purchasing aluminum window systems and configuring individual units according to approved project drawings.

Building Materials Supply

For distributors and suppliers serving residential and commercial building projects.

Façade and Building Envelope Projects

For projects where operable windows form part of a coordinated building-envelope system.

Typical Room Applications

The Jia Shang can be used for:

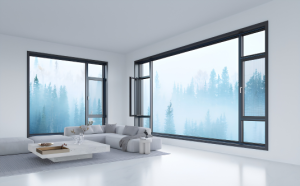

• Villa bedrooms
• Living rooms
• Dining rooms
• Kitchens
• Home offices
• Study rooms
• Guest rooms
• Apartment bedrooms
• Apartment living rooms
• Townhouse windows
• Private residential façades
• Architectural façade openings
• Renovation projects
• Residential developments

Where Jia Shang Is Particularly Useful

The system can be considered where a project needs several of the following:

Operable ventilation
The top-hinged sash provides an opening mechanism for ventilation.

Insulated glazing
The 5 + 24A + 5 double-glazed construction provides a multi-pane glazing configuration.

Glazing insulation
The argon-filled cavity adds another consideration for thermal-performance-oriented window specifications.

Weather sealing
The duckbill weather strip forms part of the sash sealing system.

Recognizable hardware
CMECH America hardware is supplied as standard.

Architectural detailing
Arch-bent corners and selectable interior/exterior colors allow greater control over the final appearance.

Color Options

The Jia Shang currently lists the following standard color options:

Exterior

• Modern Grey
• Silky Coffee

Interior

• Modern Grey
• Agate Black

The product also allows different interior and exterior colors to be combined.

This gives designers the ability to specify a façade-facing finish separately from the interior finish.

For example, the exterior can be coordinated with the building façade while the interior color is selected to complement flooring, cabinetry, walls, and other interior elements.

Design Considerations for Architects

When specifying Jia Shang, architects should consider the complete relationship between the window and the building.

Opening Clearance

Because the sash opens outward, adequate clearance should be provided outside the window.

Check the relationship between the opening sash and:

• Balconies
• Walkways
• Exterior walls
• Sunshades
• Railings
• Landscaping
• Neighboring windows
• External equipment

Window Schedule

Each opening should be documented with:

• Overall width
• Overall height
• Opening configuration
• Hinge orientation
• Glass specification
• Finish
• Hardware
• Quantity
• Installation location

Façade Coordination

The 110 × 34 mm frame should be coordinated with surrounding façade materials, wall thickness, reveals, sill details, waterproofing, insulation, and interior finishes.

Glazing Requirements

The standard glazing is 5 + 24A + 5 tempered clear glass with argon filling. Projects with specific solar-control, acoustic, privacy, or thermal targets should confirm whether a different glazing build-up is required.

Weather and Environmental Considerations

For projects in climates with high temperatures, wind, dust, and seasonal rain, the window assembly should be evaluated as a complete system.

Relevant design considerations include:

• Glazing specification
• Sash sealing
• Frame-to-wall connection
• Drainage
• Installation quality
• Exterior exposure
• Building orientation
• Shading
• Local weather conditions
• Applicable building regulations

The duckbill weather strip and insulated glazing form part of the product’s design, but final project performance should be confirmed based on the complete installed assembly.

Jia Shang for UAE and GCC Projects

Jia Shang is particularly relevant to UAE and GCC residential projects where window systems may need to balance ventilation, façade appearance, glazing insulation, dust control, and weather exposure.

For UAE villas and apartments, project teams should consider:

• Strong solar exposure
• High outdoor temperatures
• Air-conditioning loads
• Dust and sand exposure
• Wind conditions
• Seasonal rain
• Local building requirements
• Window orientation
• Glazing performance

The final product configuration should be selected according to the individual project’s performance requirements and applicable regulations.

Minimum Billable Area

The product page lists a minimum billable area of 1.2 m² per window.

This is important for project estimating and quotation planning, particularly when the project includes small individual window openings.

Project procurement teams should confirm how the minimum billable area is applied to the final quotation before placing an order.

Installation Considerations

Proper installation is important to the final performance of any aluminum window.

The installation team should coordinate:

• Structural opening dimensions
• Frame fixing
• Window alignment
• Sill detailing
• Drainage
• Weather sealing
• Perimeter sealants
• Glazing support
• Interior finishing
• Exterior waterproofing
• Operation and hardware adjustment

The final installation method should follow the manufacturer’s technical requirements and the project’s approved shop drawings.
