Description

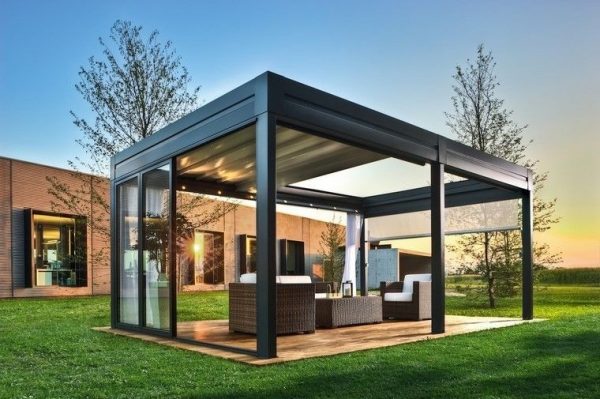

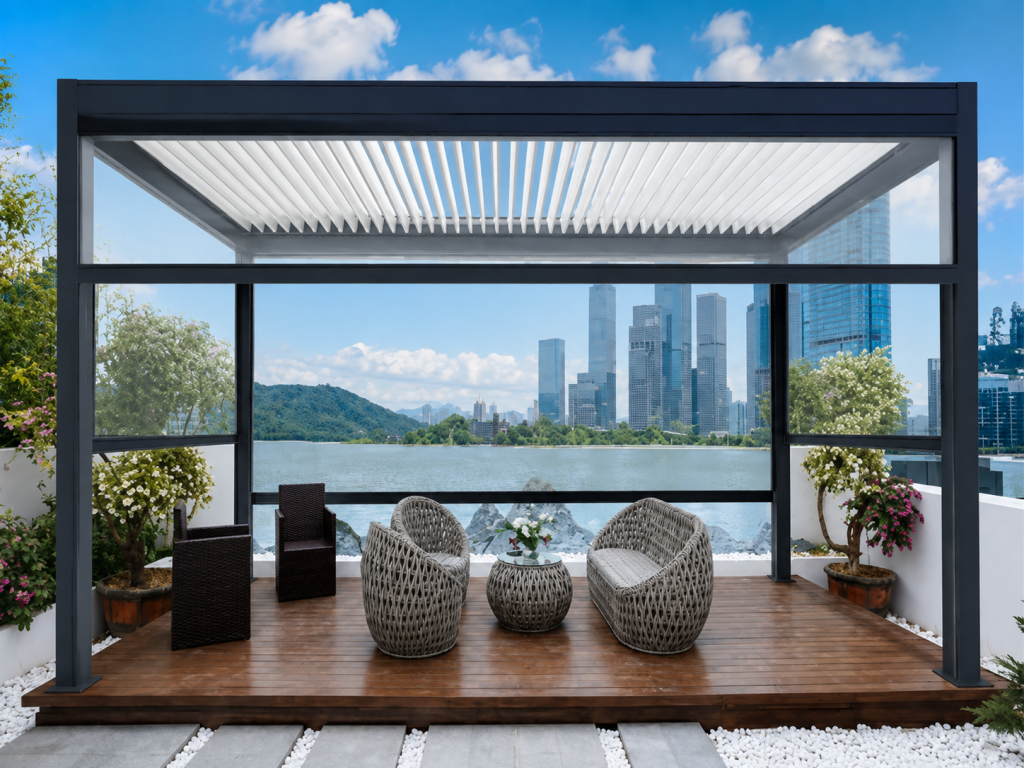

The YSUN Structure Series (YDY03) is the flagship, engineering-grade pergola in the range, built for large-scale coverage, commercial installations, and extreme weather resistance. It uses massive 135 x 135mm posts and heavy-duty 250 x 75mm side beams for a light-construction-grade load-bearing capacity, paired with 223.8mm single-blade louvers for maximum shading efficiency and an imposing architectural presence.

A commercial-grade drainage system is engineered for extreme rainfall, while panoramic LED integration, including 7-colour adjustable RGB spotlights built into both louvers and beams, turns the structure into a full lighting feature from ceiling to facade. Every profile, from thickness to joint design, is engineered and validated for wind and snow load resistance, giving the Structure Series “mountain-top stability” even in the most demanding outdoor environments.
This is the series architects and designers reach for on large-scale or complex outdoor builds where performance, span, and durability must all be top-specification.

Key Features
- Engineering-Grade Structural Strength — Massive posts and heavy-duty 250 x 75 x 2.0mm side beams achieve light-construction-grade load-bearing capacity for ultimate strength.
- Grand-Scale Wide-Format Louvers — Grand 223.8mm-wide, 1.5mm-thickened louvers deliver unmatched single-blade strength and shading efficiency, with an imposing presence.
- Commercial-Grade Drainage System — The 67.2 x 43mm oversized water gutter delivers exceptional instantaneous drainage capacity for extreme rainfall conditions.

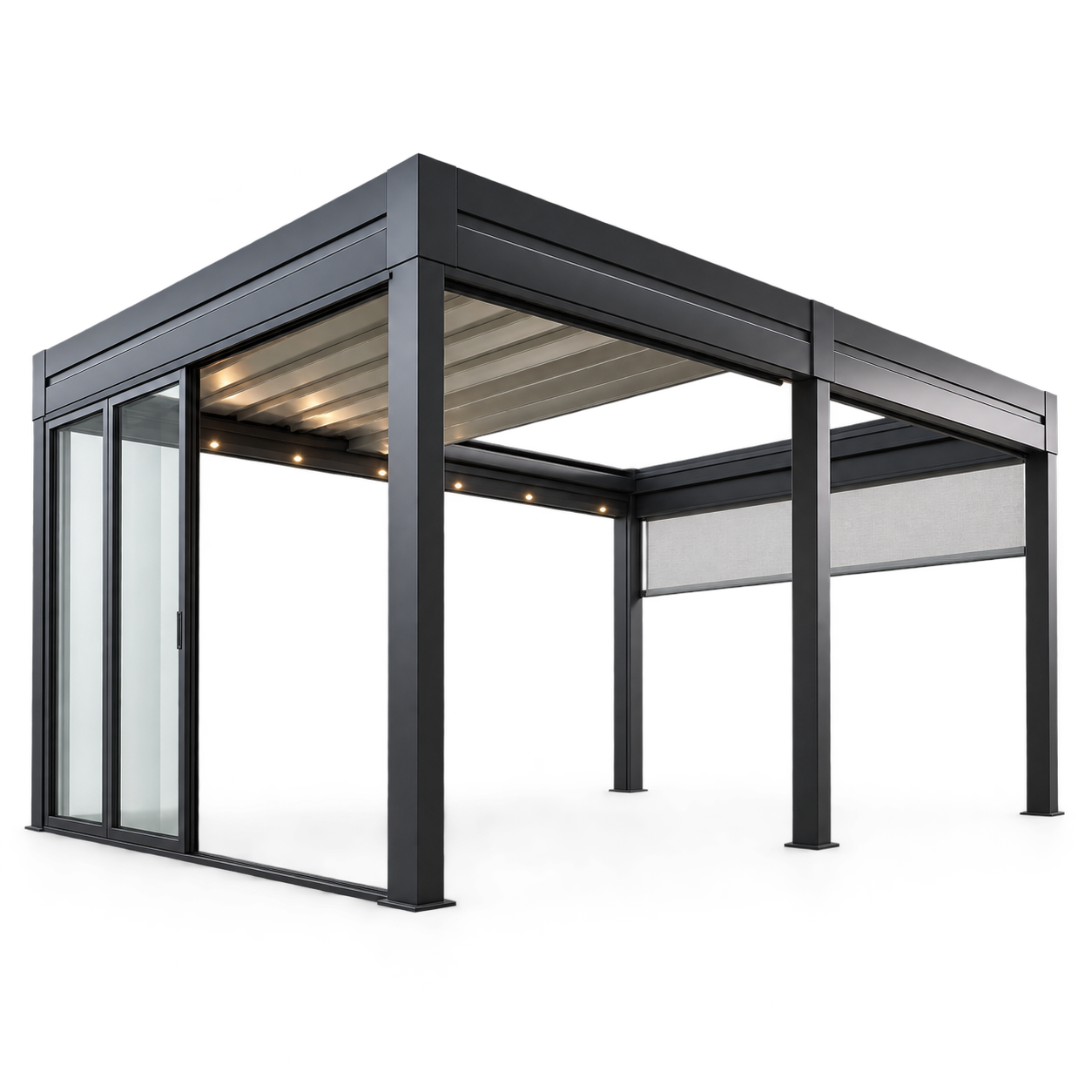

- Panoramic Immersive Lighting — LED strips integrate into both louvers and beams, combined with 7-colour adjustable RGB spotlights, for panoramic dynamic lighting from ceiling to facade.
- Extra-Large Span Coverage — Designed specifically for extra-large spans (3x3m, 3x4m and beyond), easily covering spacious, column-free patios and courtyards.
- Top-Specification Storm Resistance — Profile thickness and joint design are engineered and validated to the highest standards for wind and snow load resistance — “mountain-top stability.”
- All-Weather Entertainment Space — Powerful protection and flexible control transform large outdoor areas into all-weather venues for gatherings and entertainment.
- Legacy-Grade Durability — Top-tier materials and craftsmanship built to stand the test of time alongside the architecture.
- Boundless Design Possibilities — Gives architects and designers a powerful structural base and flexible configuration for large-scale, complex outdoor spaces.
- Defining the Pinnacle of Performance — Represents the brand’s ultimate engineering and design achievement, for connoisseurs who want the absolute best.
| Component | Specification |
|---|---|
| Post | 135 x 135 x 2.0mm |
| Louver Blade | 223.8 x 50 x 1.5mm |
| Side Beam | 250 x 75 x 2.0mm |
| Water Gutter | 67.2 x 43 x 1.5mm |
| Available Sizes | 3m x 3m x 2.3m (H) / 3m x 4m x 2.3m (H) |
| Louver Roof Operation | Motorized |
| Zip Screen | Manual or Motorized (optional) |
| 24V RGB LED Light | 7 Colors |
| LED Strips | Available (integrated in Louver + Beam) |
| Frame Material | Aluminum alloy |

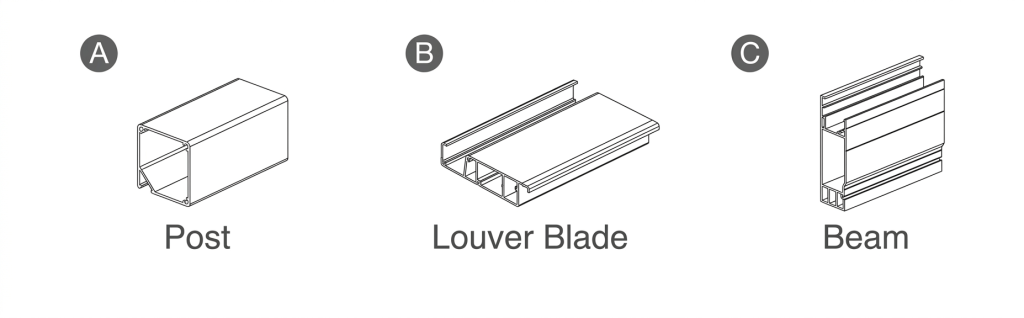

Structural Components (as labeled in technical diagram)
- A – Post: square aluminum profile, 135 x 135 x 2.0mm
- B – Louver Blade: 223.8mm wide, 1.5mm thickened single-blade louver
- C – Beam: heavy-duty structural beam, 250 x 75 x 2.0mm
Best For
Large-scale residential builds, commercial and hospitality outdoor spaces, high-wind/high-rainfall regions, and architecture/design projects requiring maximum span and storm resistance.
